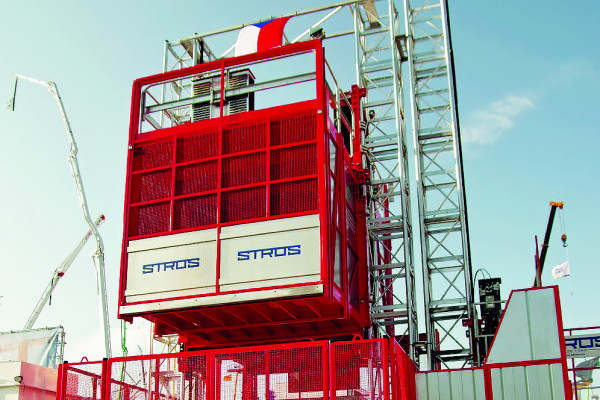

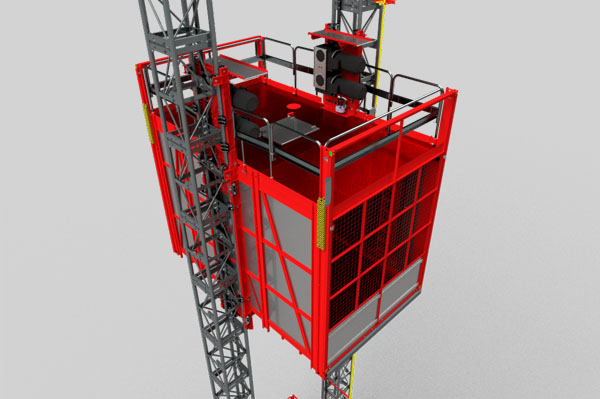

NOV 4050-3 H3 F4 T
Request spare parts
Main parameters
-
Internal dimensions of the cabin:3000 x 5000 x 3100 mm 8'2 27/64" x 16'4 27/32" x 8'2 27/64"
-
Load capacity:4000 kg / 9000 lbs
-
Maximum lifting speed:40 m/min / 130 fpm
-
Engine power:4 x 11 kW / 4 x 15 HP
12 months warranty
Lift rental
Low noise level (about 65dB)
Can be installed inside and outside the building
From design to installation
All parameters
| Internal dimensions of the cabin: | 3000 x 5000 x 3100 mm 8'2 27/64" x 16'4 27/32" x 8'2 27/64" |
|---|---|
| Standard door height | 2000 mm / 6'6 3/4 " |
| Load capacity: | 4000 kg / 9000 lbs |
| Maximum lifting speed: | 40 m/min / 130 fpm |
| Engine power: | 4 x 11 kW / 4 x 15 HP |
| Frequency converter | 90 kW / 120 HP |
| Rated current [400 V / 480 V] | 150A / 135A |
| Starting current [400 V / 480 V] | 225A / 202.5A |
| Starting current [400 V / 480 V] | 150A / 150A |
| Recommended fuse connection [400 V / 480 V] | 175A / 175A |
| Counterweight | - |

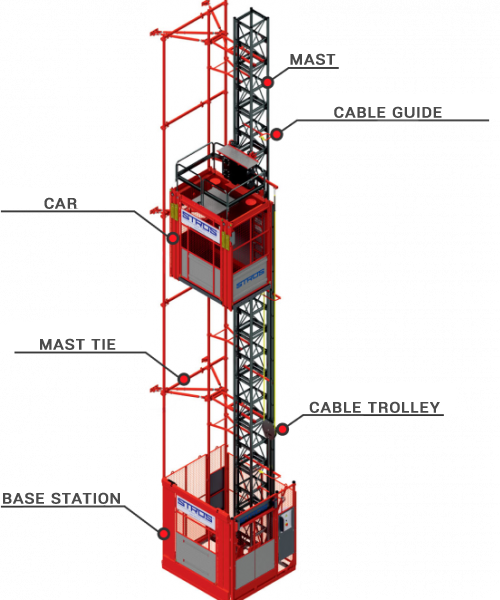

| Masts | BH, S, (H in shaft) |
| Maximum lifting height | 350 m / 1150 ft |
| Possibility of installing two cabins per 1 mast | yes |
| Control system | Joystick / Buttons / Keyboard |
