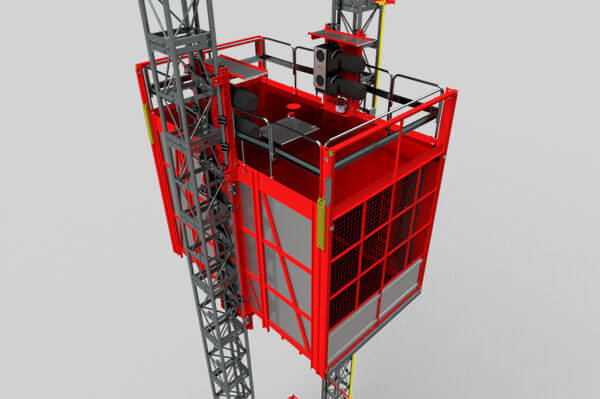

NOV 6770 F7 TW
Request spare parts
Main parameters
-
Internal dimensions of the cabin:2 400 x 7 000 x 3 050 mm
-
Load capacity:6730 kg
-
Maximum lifting speed:0-70 m/min
-
Engine power:4 x 15 kW
12 months warranty
Lift rental
Low noise level (about 65dB)
Can be installed inside and outside the building
From design to installation
All parameters
| Internal dimensions of the cabin: | 2 400 x 7 000 x 3 050 mm |
|---|---|
| Load capacity: | 6730 kg |
| Maximum lifting speed: | 0-70 m/min |
| Engine power: | 4 x 15 kW |
| Frequency converter | 110 kW / 147 HP |
| Rated current [400 V / 480 V] | 215 A / 172 A |
| Starting current [400 V / 480 V] | 320 A / 260 A |
| Starting current [400 V / 480 V] | 225 A / 200 A |
| Recommended fuse connection [400 V / 480 V] | 250 A / 225 A |
| Counterweight | - |

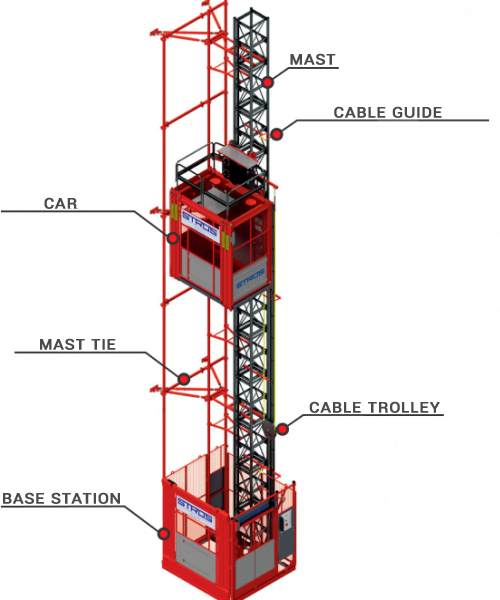

| Masts | BH or S |
| Maximum lifting height | 350 m / 1150 ft |
