NOV 2032 UP F4
Request spare parts
Main parameters
-
Internal dimensions of the cabin:1490 x 3100 x 2400 mm 4'10 11/16'' x 10'2 1/16'' x 7'10 1/2''
-
Load capacity:2000 kg / 4410 lbs
-
Maximum lifting speed:45 m/min / 147 fpm
-
Engine power:2 х 11 kW / 2 х 15 HP
12 months warranty
Lift rental
Low noise level (about 65dB)
Can be installed inside and outside the building
From design to installation
All parameters
| Internal dimensions of the cabin: | 1490 x 3100 x 2400 mm 4'10 11/16'' x 10'2 1/16'' x 7'10 1/2'' |
|---|---|
| Standard door height | 2000 mm / 6'6 3/4 " |

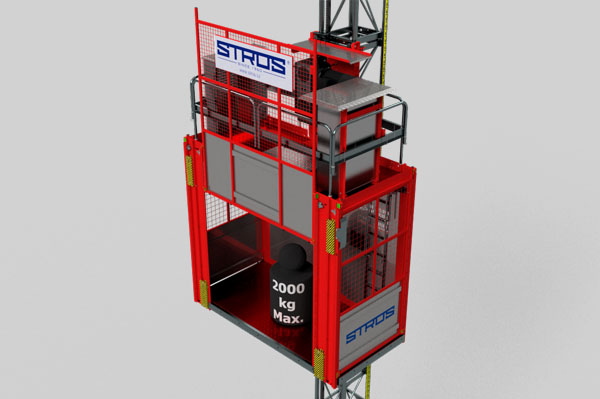

| Load capacity: | 2000 kg / 4410 lbs |
| Maximum lifting speed: | 45 m/min / 147 fpm |
| Engine power: | 2 х 11 kW / 2 х 15 HP |
| Frequency converter | 45 m/min / 147 fpm |
| Rated current [400 V / 480 V] | 80A / 69A |
| Starting current [400 V / 480 V] | 120A / 103.5A |
| Starting current [400 V / 480 V] | 90A / 80A |
| Recommended fuse connection [400 V / 480 V] | 100A / 90A |
| Counterweight | - |

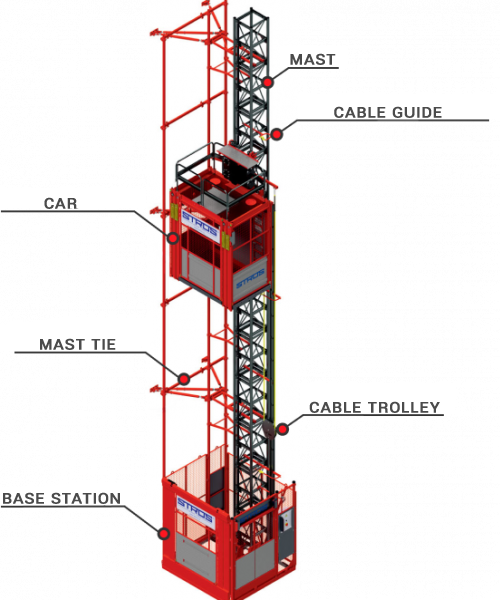

| Masts | BH, S, (H in the shaft) |
| Maximum lifting height | 350 m / 1150 ft |
| Possibility of installing two cabins per 1 mast | yes |
| Control system | Joystick / Buttons / Keyboard |
