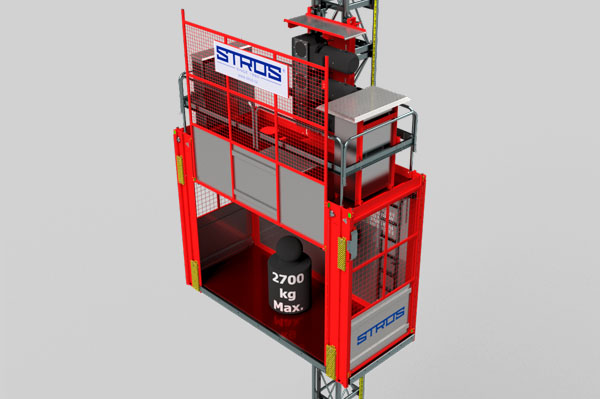

NOV 2738 UP F7
Request spare parts
Main parameters
-
Internal dimensions of the cabin:1490 x 3700 x 2400 mm 4'10 11/16'' x 12'1 43/64'' x 7'10 1/2''
-
Load capacity:2700 kg / 6000 lbs
-
Maximum lifting speed:70 m/min / 230 fpm
-
Engine power:3 x 15 kW / 3 x 20 HP
12 months warranty
Lift rental
Low noise level (about 65dB)

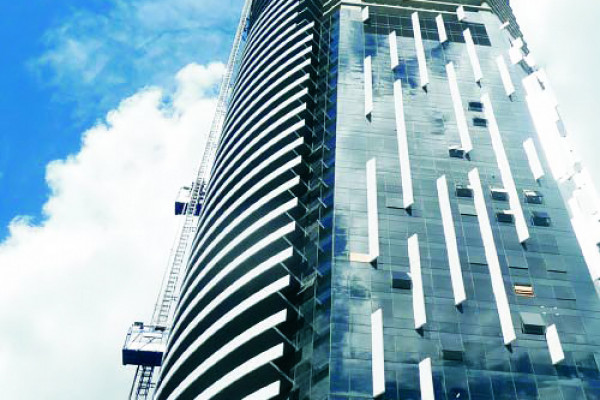

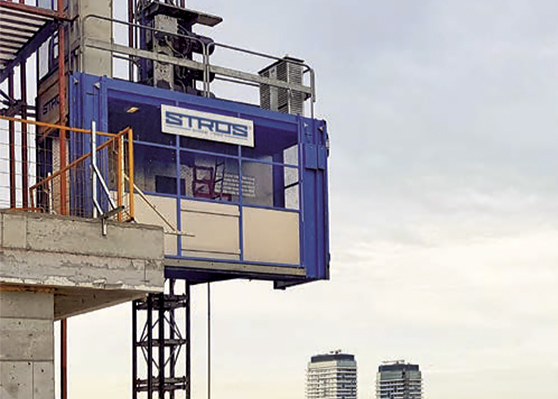

Can be installed inside and outside the building
From design to installation
All parameters
| Internal dimensions of the cabin: | 1490 x 3700 x 2400 mm 4'10 11/16'' x 12'1 43/64'' x 7'10 1/2'' |
|---|---|
| Standard door height | 2000 mm / 6'6 3/4 " |
| Load capacity: | 2700 kg / 6000 lbs |
| Maximum lifting speed: | 70 m/min / 230 fpm |
| Engine power: | 3 x 15 kW / 3 x 20 HP |
| Frequency converter | 90 kW / 120 HP |
| Rated current [400 V / 480 V] | 150A / 135A |
| Starting current [400 V / 480 V] | 225A / 202.5A |
| Starting current [400 V / 480 V] | 150A / 150A |
| Recommended fuse connection [400 V / 480 V] | 175A / 175A |
| Counterweight | - |

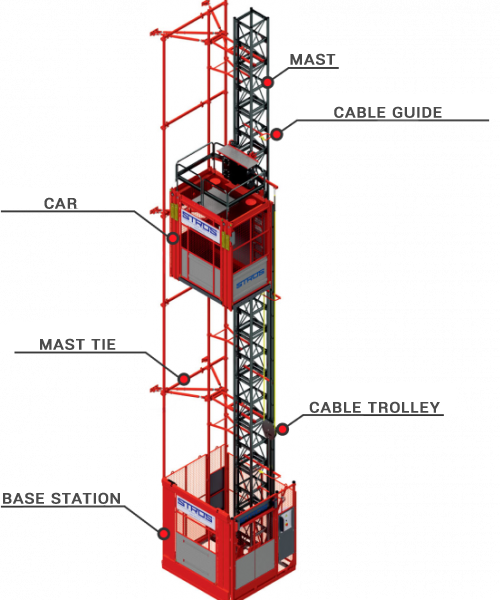

| Masts | BH, S, (H in the shaft) |
| Maximum lifting height | 350 m / 1150 ft |
| Possibility of installing two cabins per 1 mast | yes |
| Control system | Joystick / Buttons / Keyboard |
