Passenger Hoists

STROS -Sedlčanské strojírny is a Czech company that has been producing hoisting equipment for over than 60 years. STROS designs and manufactures a broad set of electrical mast hoists, including passenger hoists, industrial personnel elevators. All output is ISO 9001 certified and meets the most demanding requirements.

STROS Passenger Hoists work on the same principle as the lift system: the closed cabin moves vertically down and up along the mast. They primary are used during the building process construction, repairing, and installation work.

Passenger and Goods Hoist

Passenger Hoists are used to lift passengers (sometimes goods) at altitudes up to 350 m. They could be installed inside or outside of the building and allows to safely and effectively carry out work at height.

This equipment has improved which distinguishes Czech products from the others:

  • loading capacity is from 1,3 tonnes up to 3 tonnes.

  • the joint use of 2 cabins – cargo and passenger with one mast

  • Fully automatic and regulation-stable control.

  • Installed converter for speed adjusted.

  • Maх. speed up to 90 m/min.

  • reduced noise and vibrations.

  • Tested in extreme circumstances.

For safety reasons, all elevators are equipped with 4 steps fall protection system, and additional safety equipment.

The comprehensive product range includes more than 30 different types of Passenger Hoists.

Passenger Hoists

Hoist NOV 1324 UP

NOV 1324 UP

Passenger Hoist

Max. height: 350 m
Max. weight: 1300 kg
Speed: 40 m/min
Open the category
Hoist NOV 1832 UP

NOV 1832 UP

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 35 m/min
Open the category
Hoist NOV 1832-2 UP F4

NOV 1832-2 UP F4

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 45 m/min
Open the category
Hoist NOV 1832-2 UP F5

NOV 1832-2 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 55 m/min
Open the category
Hoist NOV 1832-2 UP F7

NOV 1832-2 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 70 m/min
Open the category
Hoist NOV 1832-2 UP F9

NOV 1832-2 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 1800 kg
Speed: 90 m/min
Open the category
Hoist NOV 2032 UP

NOV 2032 UP

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 35 m/min
Open the category
Hoist NOV 2032 UP F4

NOV 2032 UP F4

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 45 m/min
Open the category
Hoist NOV 2032 UP F5

NOV 2032 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 55 m/min
Open the category
Hoist NOV 2032 UP F7

NOV 2032 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 70 m/min
Open the category
Hoist NOV 2032 UP F9

NOV 2032 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 2000 kg
Speed: 90 m/min
Open the category
Hoist NOV 2438-2 UP F5

NOV 2438-2 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2400 kg
Speed: 55 m/min
Open the category
Hoist NOV 2438-2 UP F7

NOV 2438-2 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2400 kg
Speed: 70 m/min
Open the category
Hoist NOV 2438-2 UP F9

NOV 2438-2 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 2400 kg
Speed: 90 m/min
Open the category
Hoist NOV 2738 UP F5

NOV 2738 UP F5

Passenger Hoist

Max. height: 350 m
Max. weight: 2700 kg
Speed: 55 m/min
Open the category
Hoist NOV 2738 UP F7

NOV 2738 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2700 kg
Speed: 70 m/min
Open the category
Hoist NOV 2738 UP F9

NOV 2738 UP F9

Passenger Hoist

Max. height: 350 m
Max. weight: 2700 kg
Speed: 90 m/min
Open the category
Hoist NOV 2942-2 UP F7

NOV 2942-2 UP F7

Passenger Hoist

Max. height: 350 m
Max. weight: 2900 kg
Speed: 70 m/min
Open the category

Comparison of lifts with lifting capacity up to 2000 kg

Type NOV 2032 UP NOV 2032 UP F4 NOV 2032 UP F5 NOV 2032 UP F7 NOV 2032 UP F9
Internal dimensions of the lift 1490 x 3100 x 2400 mm
Lift capacity 2000 kg
NOV 1832 UP NOV 1832-2 UP F4 NOV 1832-2 UP F5 NOV 1832-2 UP F7 NOV 1832-2 UP F9
Internal dimensions of the lift 1990 x 3100 x 2400 mm
Standard door clearance 2000 mm
Lift capacity 1800 kg
Maximum lift speed 35 m/min 45 m/min 55 m/min 70 m/min 90 m/min
Engine power 2 x 11 kW 2 x 11 kW 2 x 15 kW 3 x 11 kW 3 x 15 kW
Frequency converter - 45 kW 55 kW 75 kW 90 kW
Rated current [400V / 480V] 55 / 50 A 80 A / 69 A 100 A / 83 A 122 A / 112 A 150 A / 135 A
Starting current [400V / 480V] 275 A / 250 A 120 A / 103.5 A 150 A / 124.5 A 183 A / 168 A 225 A / 202.5 A
Main protection [400V / 480V] 63/D 90 A / 80 A 100 A / 90 A 125 A / 150 A 150 A / 150 A
Recommended fuse connection [400V / 480V] 70 A / 70 A 100 A / 90 A 125 A / 100 A 175 A / 150 A 175 A / 175 A
Counterweight - - - - -
Masts BH, S, (H in the shaft) BH, S, (H in the shaft) BH, S, (H in the shaft) BH, S, (H in the shaft) BH, S, (H in the shaft)
Max. lift height 350 m 350 m 350 m 350 m 350 m
Possibility to operate two elevator cages on one mast yes yes yes yes yes
Control Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard Joystick / Buttons / Keyboard


FAQ

Of course, the company provides a guarantee for all products. The standard warranty is 12 months. The warranty can be extended up to 24 or 36 months, but only if our company will carry out maintenance of elevators.
Some models of lifts may be available at the factory. But most of the equipment is made to order. It takes from 4 to 12 weeks to produce one elevator. The complexity of the work and the number of elevators required are the main criteria that affect the production time. When placing an order, the customer specifies the type of equipment and the required quantity, and only after that the manufacturer can determine the manufacturing time.
Passenger Hoists from manufacture

We pride ourselves on being the only official representative of STROS -Sedlčanské strojírny in Saudi Arabia. STROS Passenger Hoists are one of the best and most exclusive lifting equipment in the world market.  All STROS products are manufactured following the guidelines of the ISO 9001 quality standards. The company is focused on thoughtful design, quality, and safety, using advanced manufacturing equipment and leading technology.

Technical support and advisory services are provided throughout the entire process from project development to supervision. Optionally, we can manufacture to supply on going orders or bespoke requirements.

OUR ADVANTAGES

Flexible working conditions Individual approach to each client.
Search for solutions in non-standard situations
Professional installation We make professional installation of mast lifts
Delivery from warehouse We deliver the equipment you purchased to the facility
Availability of spare parts Main consumables and spare parts are in stock
Large equipment park Large, constantly updated range of equipment
Honest prices We offer a price without intermediary markups

COMPLETED PROJECTS

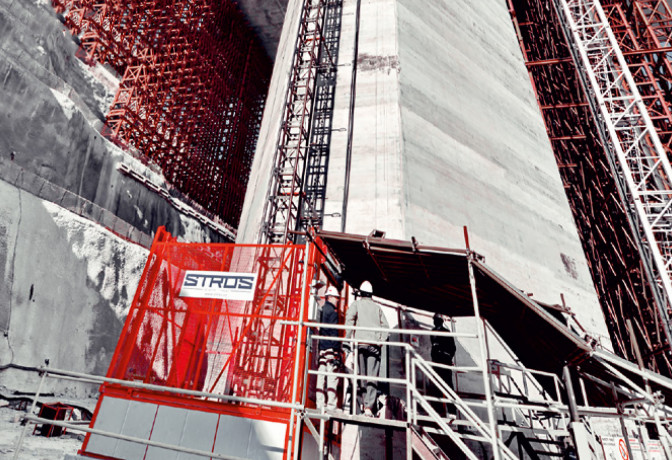

Turkey, Istanbul
3rd Bosphorus Bridge
Scope of work: installation and commissioning of the NOV 2032 UP F7, maintenance
Lifting height
320 m
Narva, Estonia
Construction hoist
Scope of work: installation, commissioning of the lift NOV 2032 UP, maintenance
Lifting height:
188 m

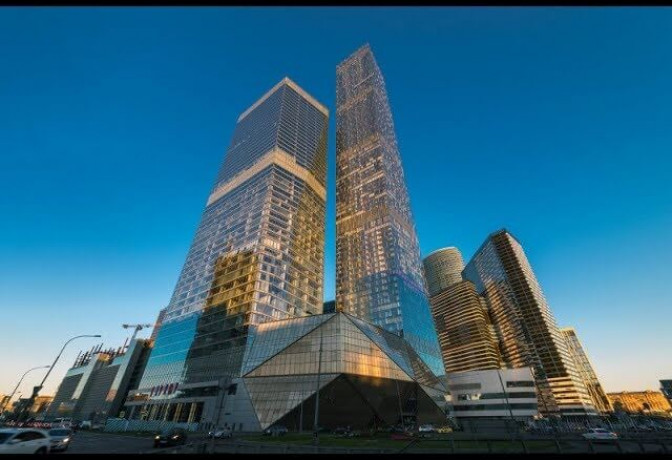

Russia, Moscow
OKO, Complex
Scope of work: installation and commissioning of the lift NOV 2032 UP II F7, maintenance
Customer:
Object:
Lifting height:
170 and 220 meters

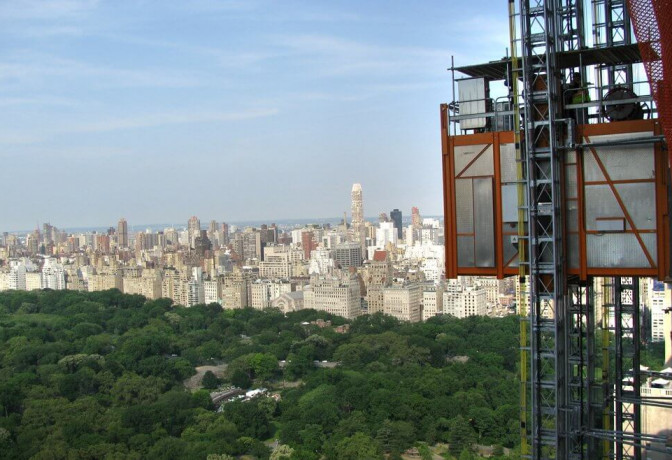

58th Street, NY, USA
Dual mast construction hoist
Scope of work: installation and commissioning of the lift NOV 5462 F7 W TWIN, maintenance
Object:
Lifting height:
310 meters

Certificates and Documentation

ISO 9001
Lifting Equipment

Passenger Hoists from manufacture

By choosing us, you get only original and certified products. All Passenger Hoists are supplied Saudi Arabia straight from Czech, where the manufacture is based. They come with all necessary documents for submission to customs, and documentation accompanying the equipment including instructions about the intended use, and details for the installation and repair. Along with that, you will receive certificates of approval and 12 months warranty. We take the same responsibility for quality and shipping time as the manufacturer.

GET A COMMERCIAL OFFER
We will select a lift suitable for your project, tell the timing and cost of implementation
